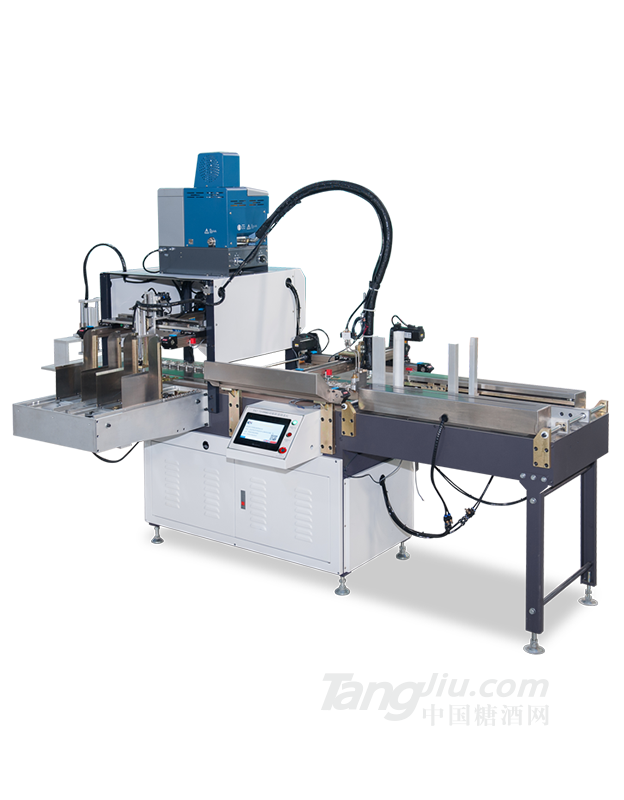

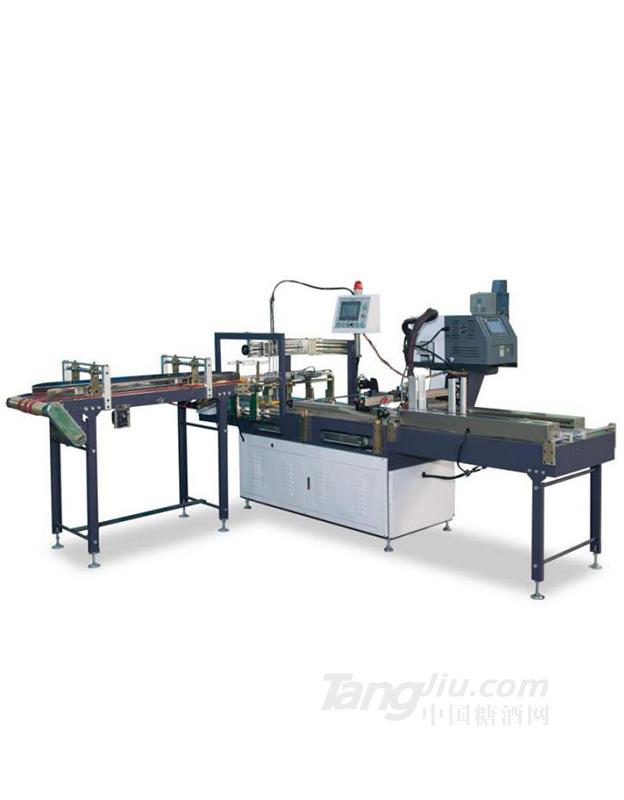

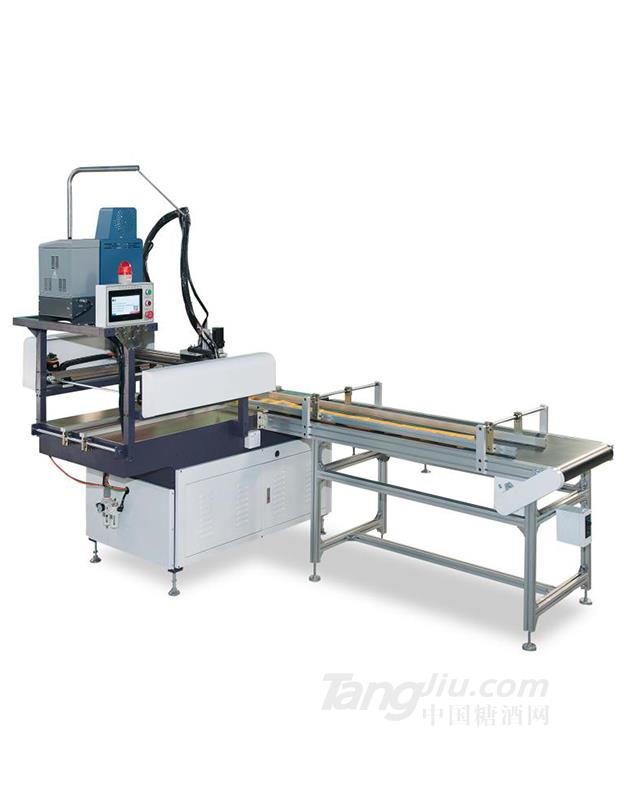

FKT供应FKT -YY400眼影盒组装机

机器特点 / Feature And Characteristics

1.采用PLC控制,操作简单，整机只需一个人操作。

2.伺服定位，精准度高，提升产品质量。

3.可贴单粉底盒，也可同时贴粉底盒和镜片。

4.速度快，效率高，20-30pcs/分钟，为广大客户解决用工难题。

5.采用快干压敏胶系统，组完可以直接打包入库。

1.PLC control, easy operation, one worker to run this machine.

2.Position by servo motor, high accuracy, it can improve the product quality.

3.It both can position shadow powder box and mirror to the hard cover.

4.Quickly speed, high efficiency, 20-30pcs/minutes, to save the labor cost.

5.It use hot melt glue system, after assembling it can packing to the stock directly.

适用范围 / Application

适用于化妆品盒、粉底盒、精装盒等盒子。

For making make-upbox, foundation box ,eye shadow box, hardcover box.

机器参数 / Machine Parameter

型号Model：FKT-YY400

电源Power Supply: 220v/50HZ

整机功率Total Power: 6.3kw

速度Speed: 20-30PCS/MIN

重量Weight: 850kg

最大皮壳尺寸（L*W）Case size (Max): 750mm*380mm

最小皮壳尺寸（L*W）Paper board size (Min): 100mm*50mm

机器尺寸（L*W*H）Machine Dimension: 2880mm*1450mm*1850mm
